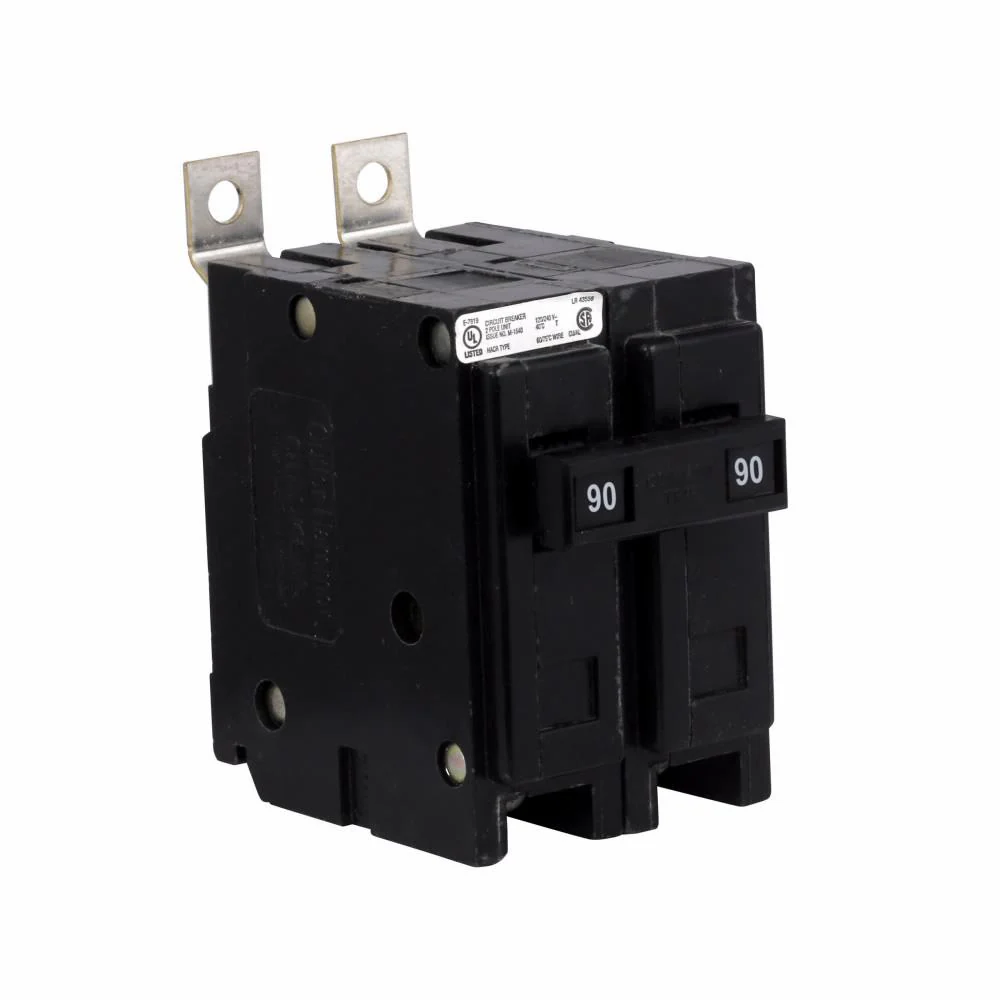

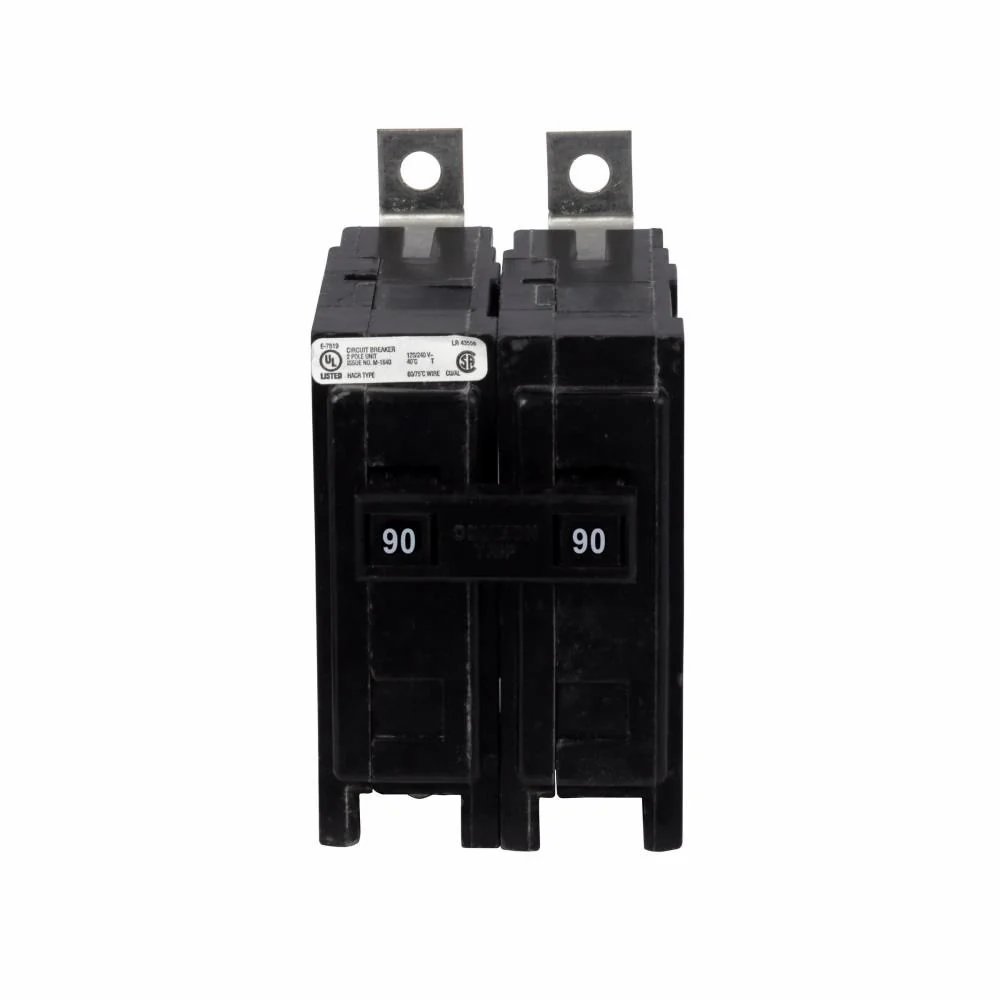

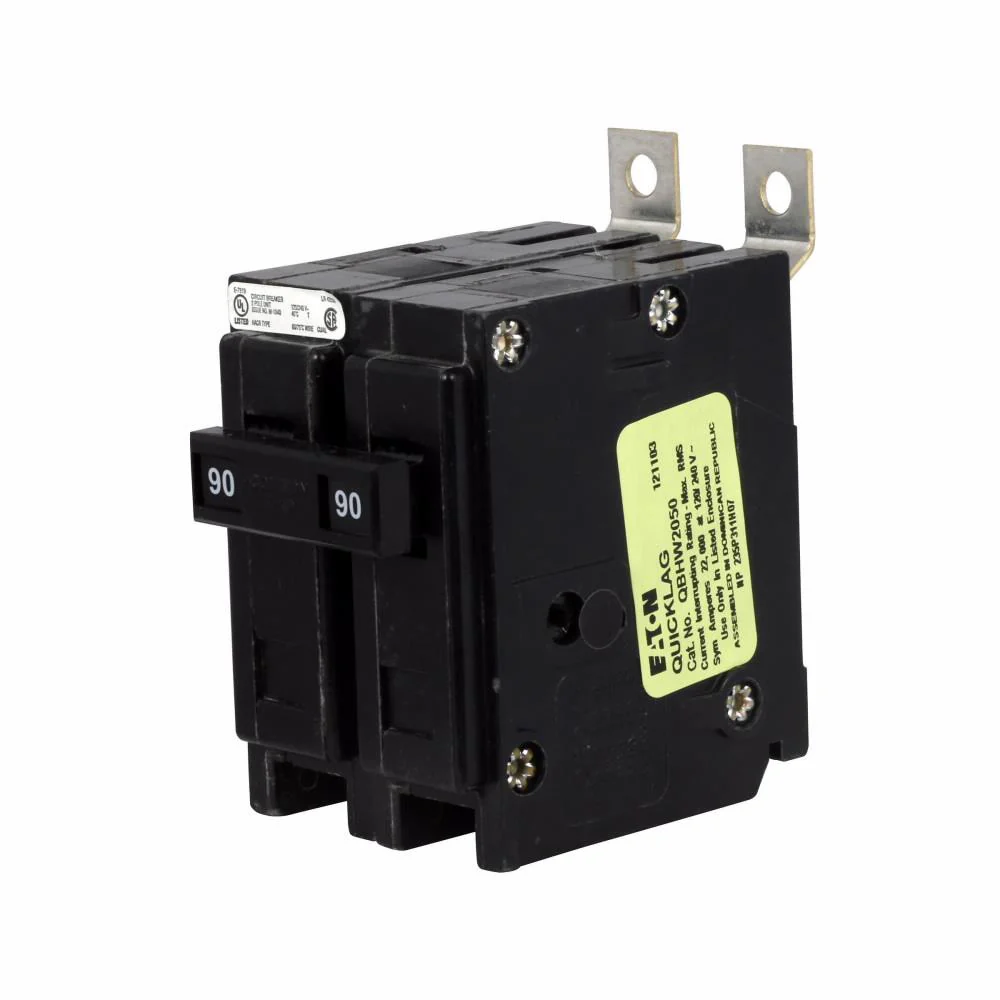

QBHW2090 - Eaton Cutler-Hammer Bolt-On Circuit Breaker

Cutler Hammer quicklag QBHW series double pole single phase 90 ampere bolt-on molded case circuit breaker with maximum voltage rating of 240V tripping method thermal magnetic and standard interrupting rating of 22 kiloampere at 240V complete with (LI) long-time and instantaneous trip functions.

Specifications:

• Product Name: Quicklag Industrial Thermal-Magnetic Circuit Breaker
• Product Length: 3.8 IN
• Product Height: 4.7 IN
• Product Width: 2.2 IN
• Product Weight: .8 LB
• Certifications: CSA Certified, UL Listed
• Catalog Notes: HACR rated
• Mounting: Bolt-on
• Interrupt Rating: 22 kAIC
• Type: Quicklag
• Circuit Breaker Type: QBHW
• Quantity: Q7
• Voltage Rating: 120/240V
• Amperage Rating: 90A
• Trip Type: Non-Interchangeable
• Number Of Poles: Two-pole
• Authentic Eaton/Cutler-Hammer Product
• Dimensions (H x W x L): 4.7" x 2.2" x 3.8"
