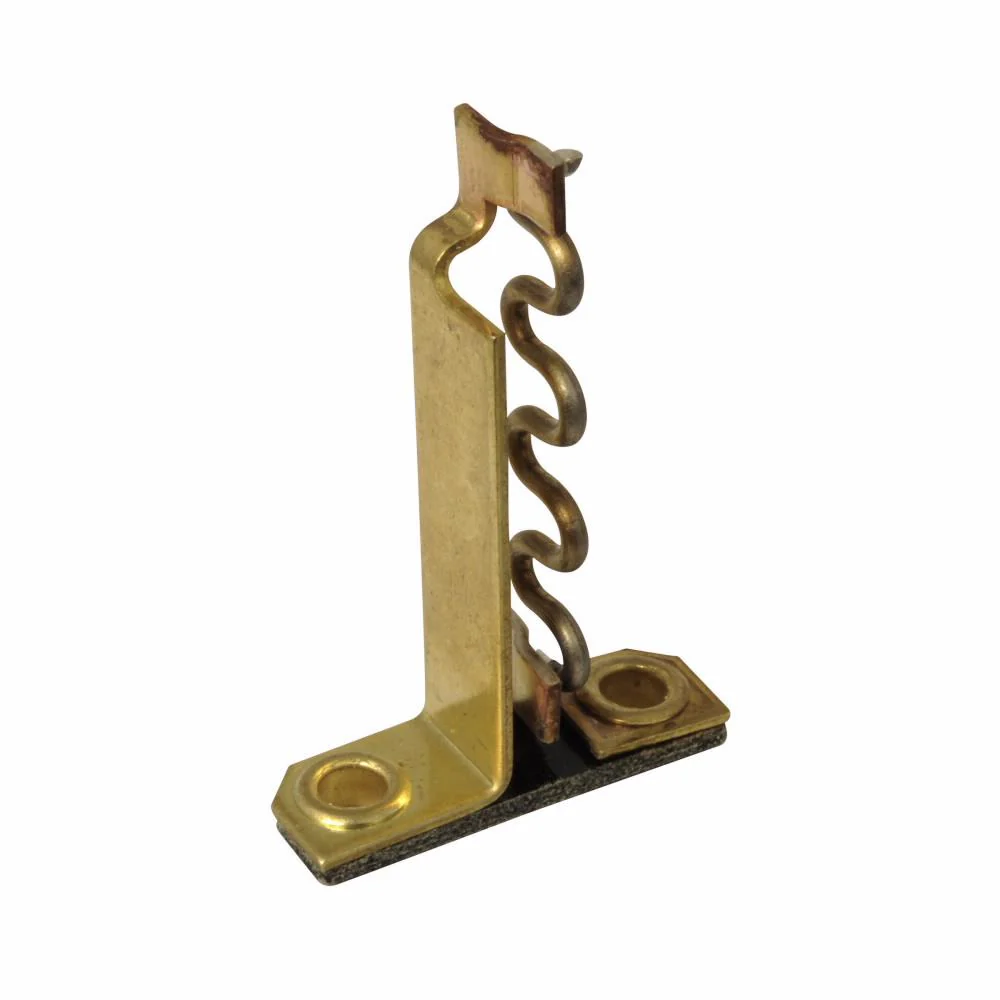

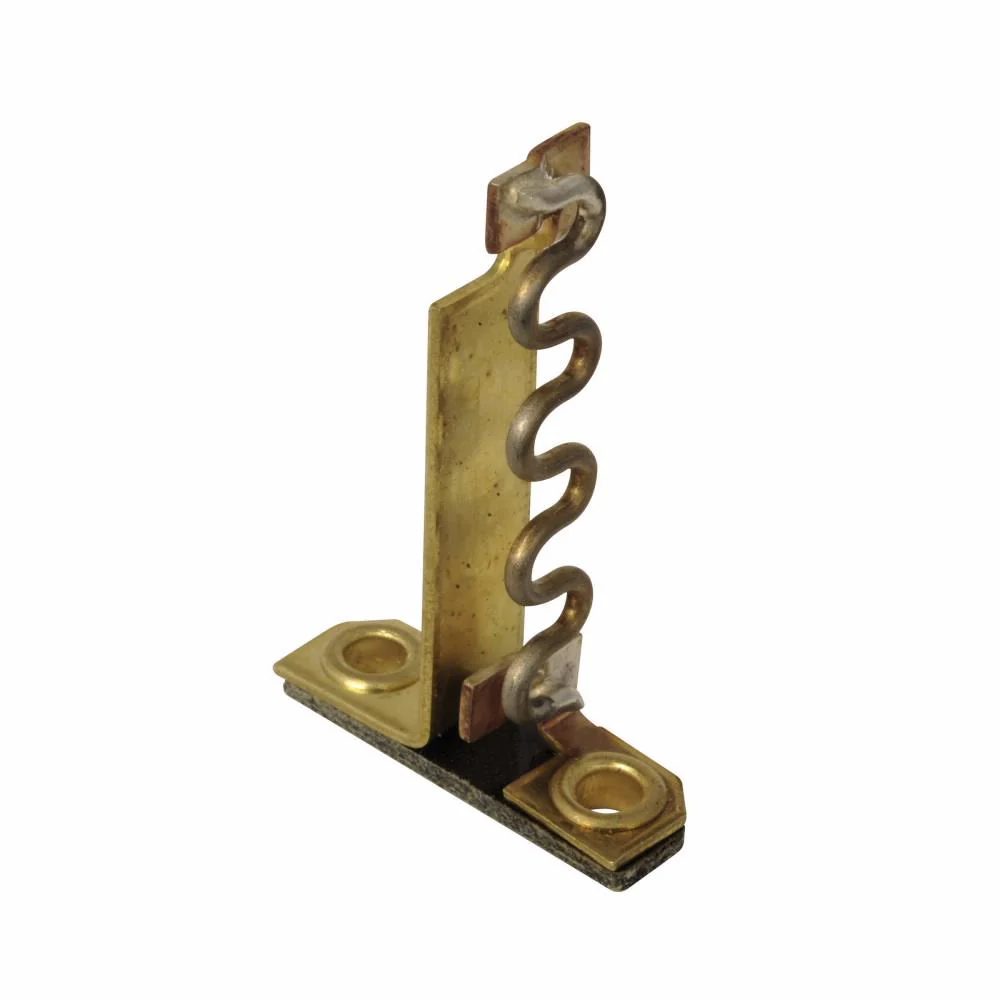

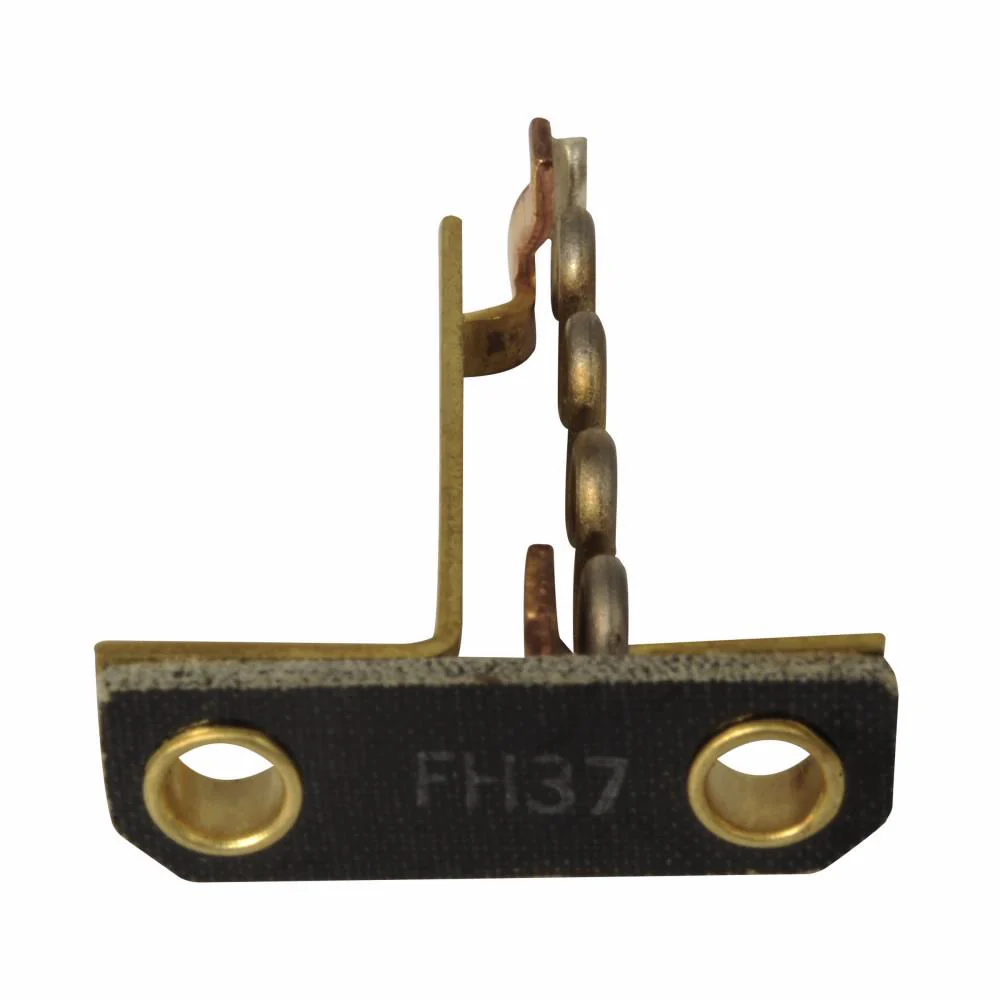

FH37 - Eaton Cutler-Hammer Overload Relay Heater

Specifications:

• Product Name: Eaton A200/B100 heater
• UPC: 786678629988
• Product Length/Depth: .8 IN
• Product Height: 2 IN
• Product Width: 1.1 IN
• Product Weight: .05 LB
• Certifications: UL Listed, CSA Certified
• Catalog Notes: Select heater coils based on full load current(FLA) shown on motor nameplate. Heater coils are rated to protect 40 degree C rise and a service factor of 1.15, Single-Phase requires 2 heaters, Three-Phase Requires 3 heaters
• Design: NEMA
• Full Load Current Range: Ambient 6.5-7.1, 7.6-8.2A, Non-Comp 6.0-6.6, 7.4-8.0A
• Overload Relay: Type A and B
• Special Features: Used with Starter Sizes 0,1, and 2
• Type: A200/B100 Heater
• Used With: Used with Starter Sizes 0,1, and 2
• Trip Type: Thermal and Fast Trip
• Authentic Eaton/Cutler-Hammer Product
• Dimensions (H x W x L): 2" x 1.1" x 0.8"
