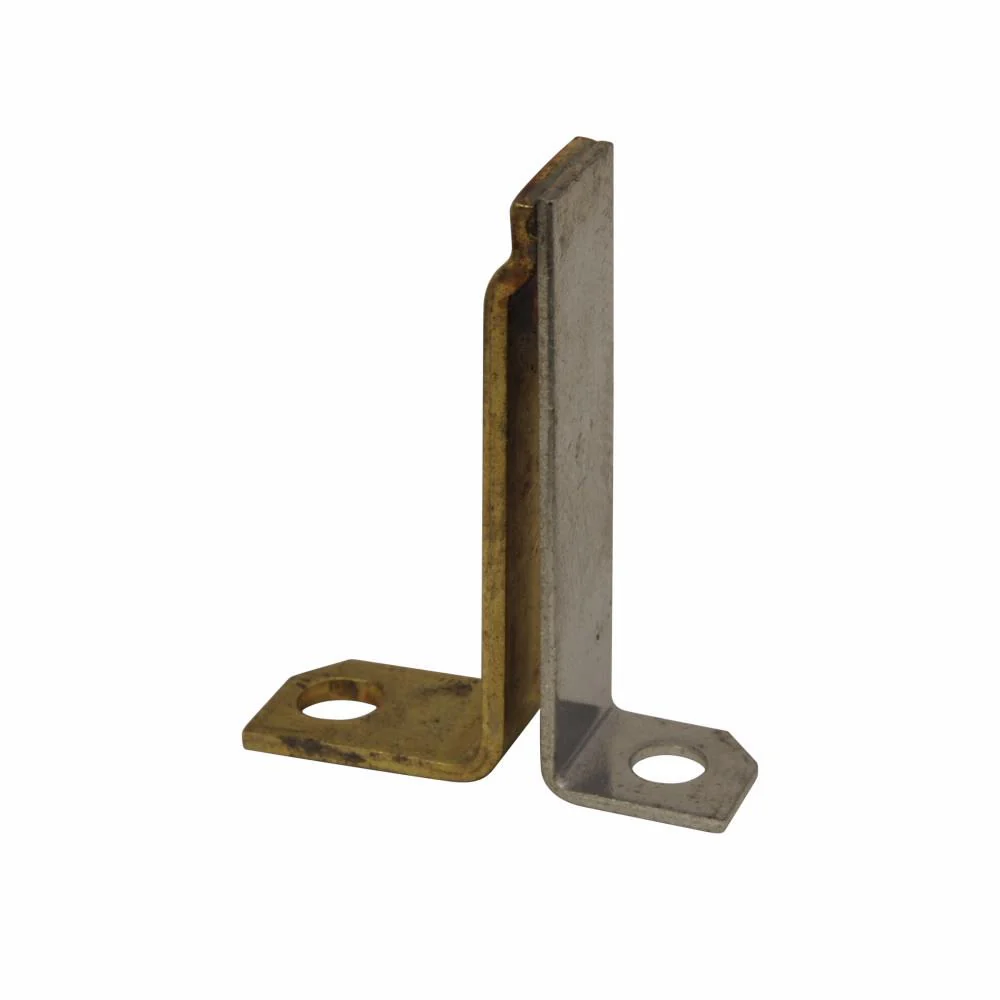

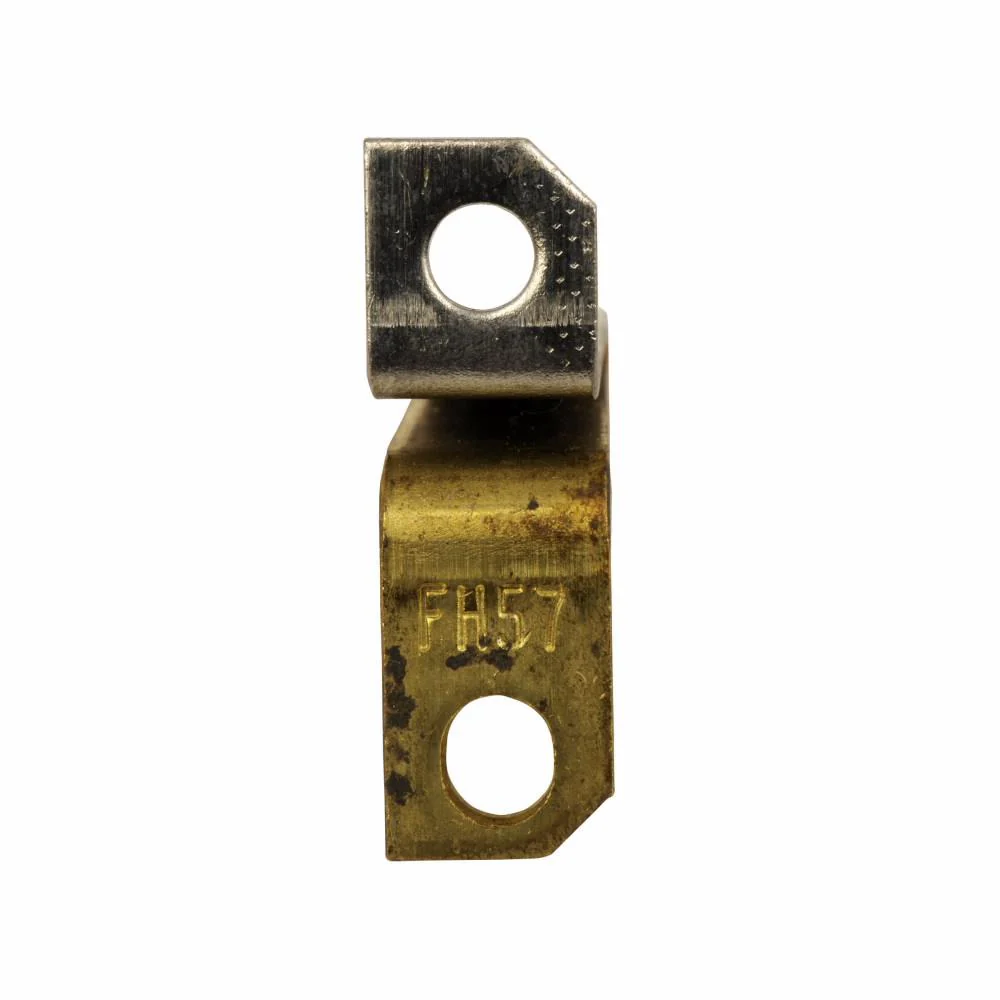

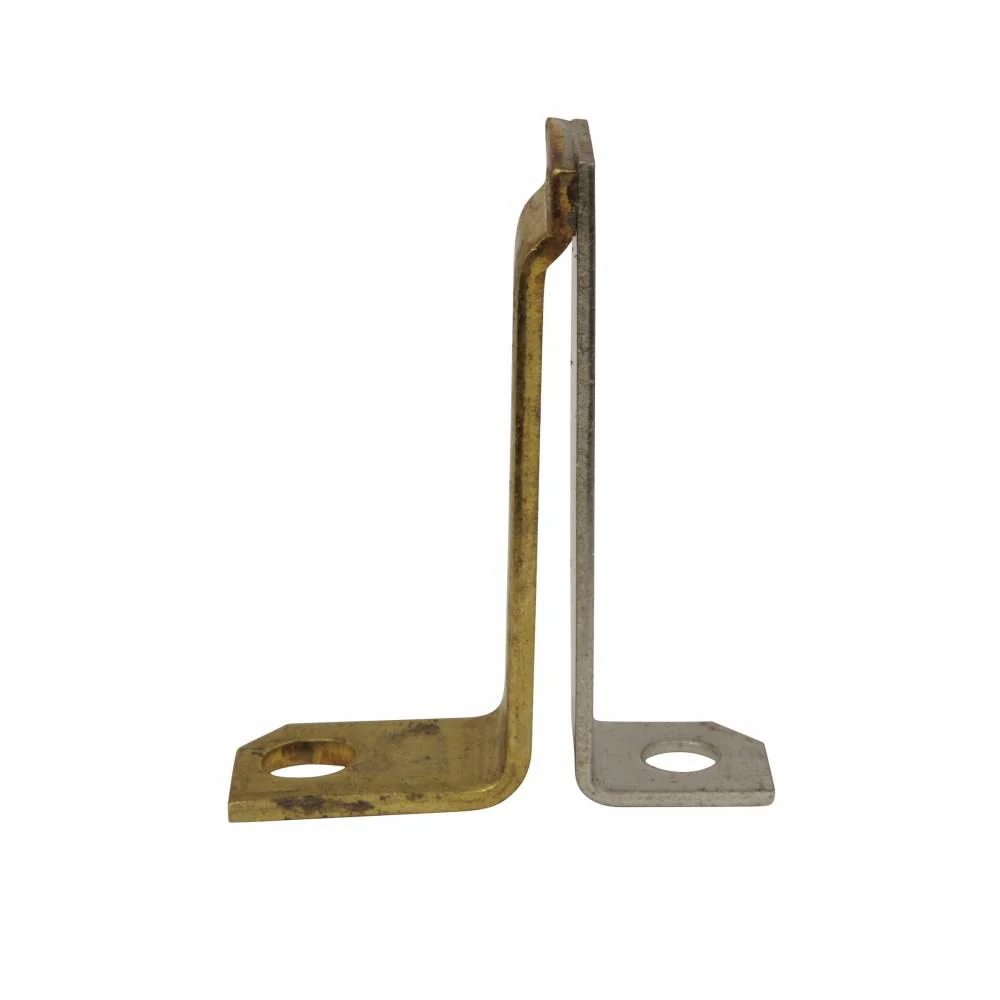

FH57 - Eaton Cutler-Hammer Overload Relay Heater

Specifications:

• Product Name: A200/B100 Heater
• UPC: 786678670577
• Certifications: CSA Certified, UL Listed
• Catalog Notes: Select heater coils based on full load current(FLA) shown on motor nameplate. Heater coils are rated to protect 40 degree C rise and a service factor of 1.15, Single-Phase requires 2 heaters, Three-Phase Requires 3 heaters
• Design: NEMA
• Full Load Current Range: Ambient 41.6-45A, Non-Comp 38.6-42.3A
• Overload Relay: Type A and B
• Special Features: Used with Starter Size 2
• Type: A200/B100 Heater
• Used With: Used with Starter Size 2
• Trip Type: Thermal and Fast Trip
• Authentic Eaton/Cutler-Hammer Product
