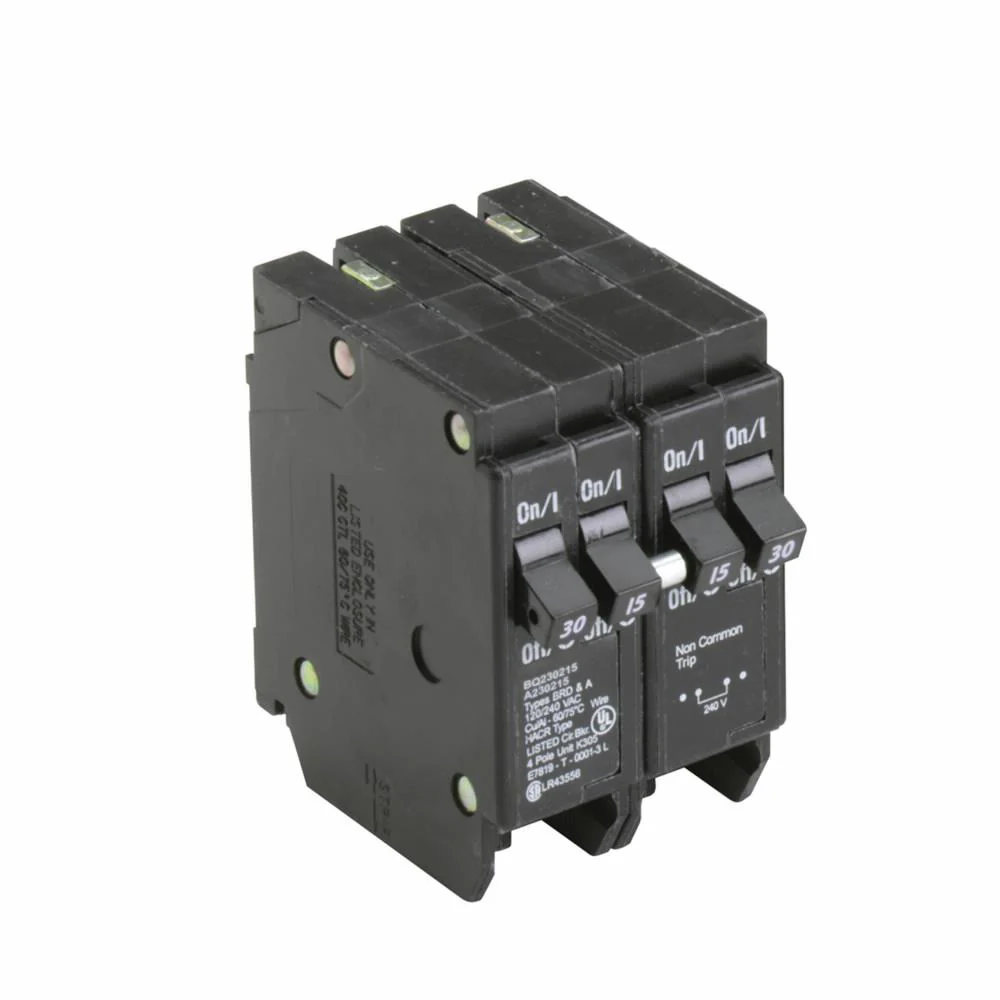

BQ230215 - Eaton Cutler-Hammer Plug-On Molded Case Circuit Breaker

Specifications:

• Product Name: Type BQ 1-inch CTL Plug-on Breaker
• UPC: 786676004565
• Product Length/Depth: 3 IN
• Product Height: 3 IN
• Product Width: 2 IN
• Product Weight: .9 LB
• Compliances: Federal Specifications Classification W-C375
• Certifications: UL 489
• Catalog Notes: All Type BD Duplex and BQ Quadplex circuit breakers carry listing for HACR applications. All 15 and 20 ampere single poles are switch duty rated
• Special Features: Includes Rejection Tab feature
• Interrupt Rating: 10 kAIC
• Type: Type BQ Quadplex Independent Trip
• Wire Size: #14-4 AWG Cu/Al
• Used With: Type BR Loadcenters
• Main Circuit Breaker: BQ
• Quantity: Q28
• Mounting Method: Plug-on
• Voltage Rating: 120/240V
• Amperage Rating: (1) Two-Pole 30A, (1) Two-Pole 15A
• Trip Type: Independent
• Number Of Poles: Four-pole
• Authentic Eaton/Cutler-Hammer Product
• Dimensions (H x W x L): 3" x 2" x 3"
