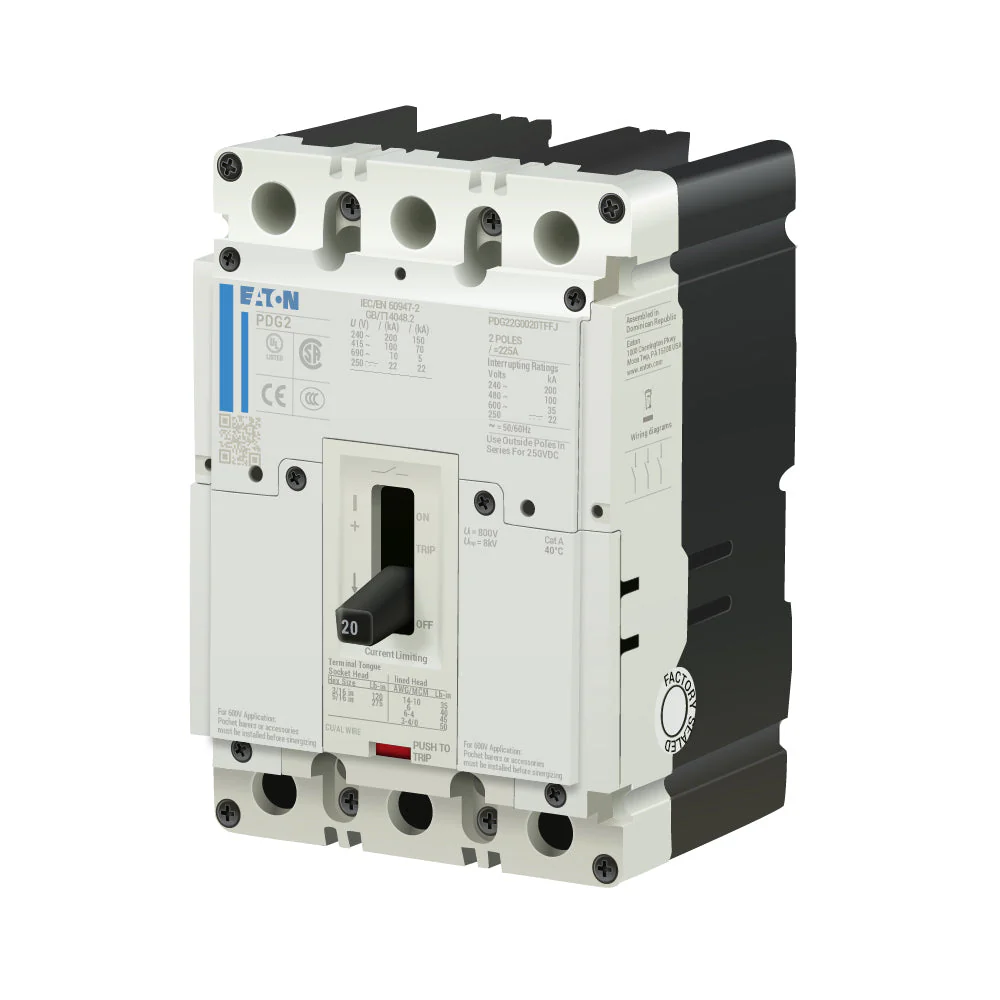

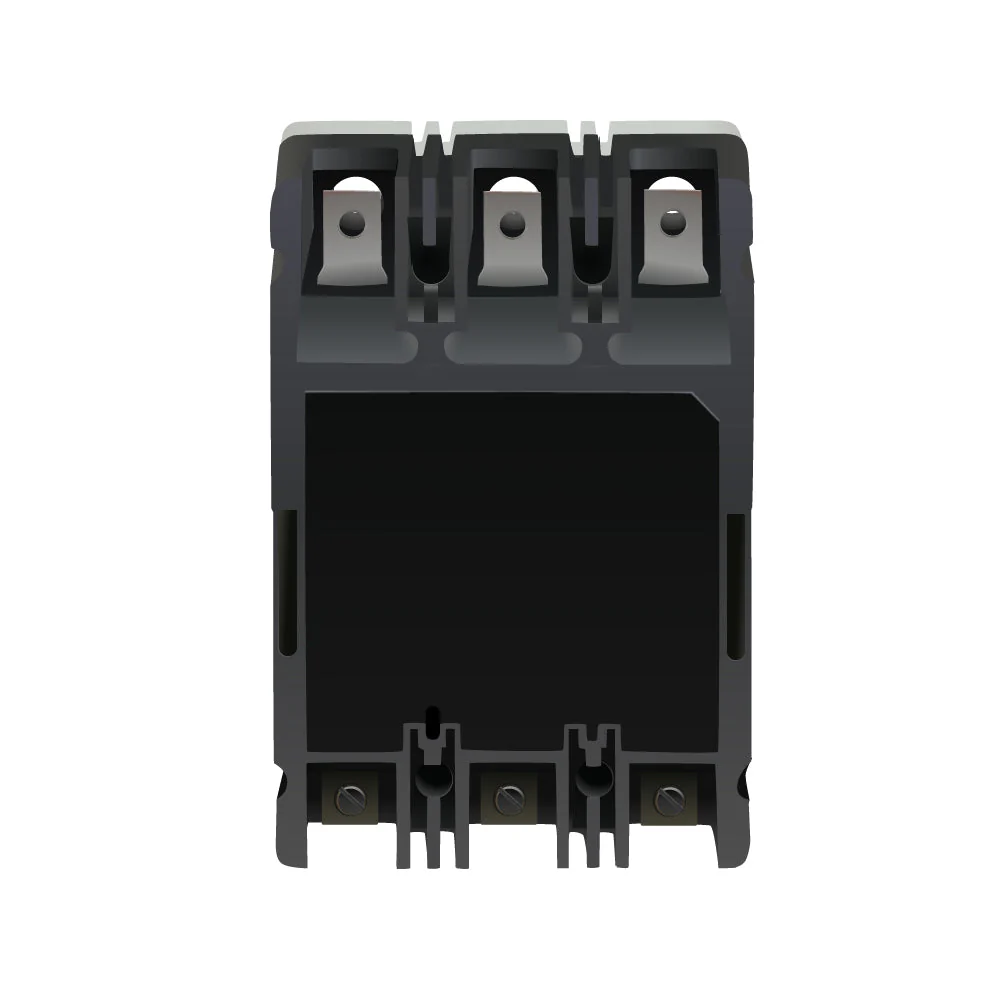

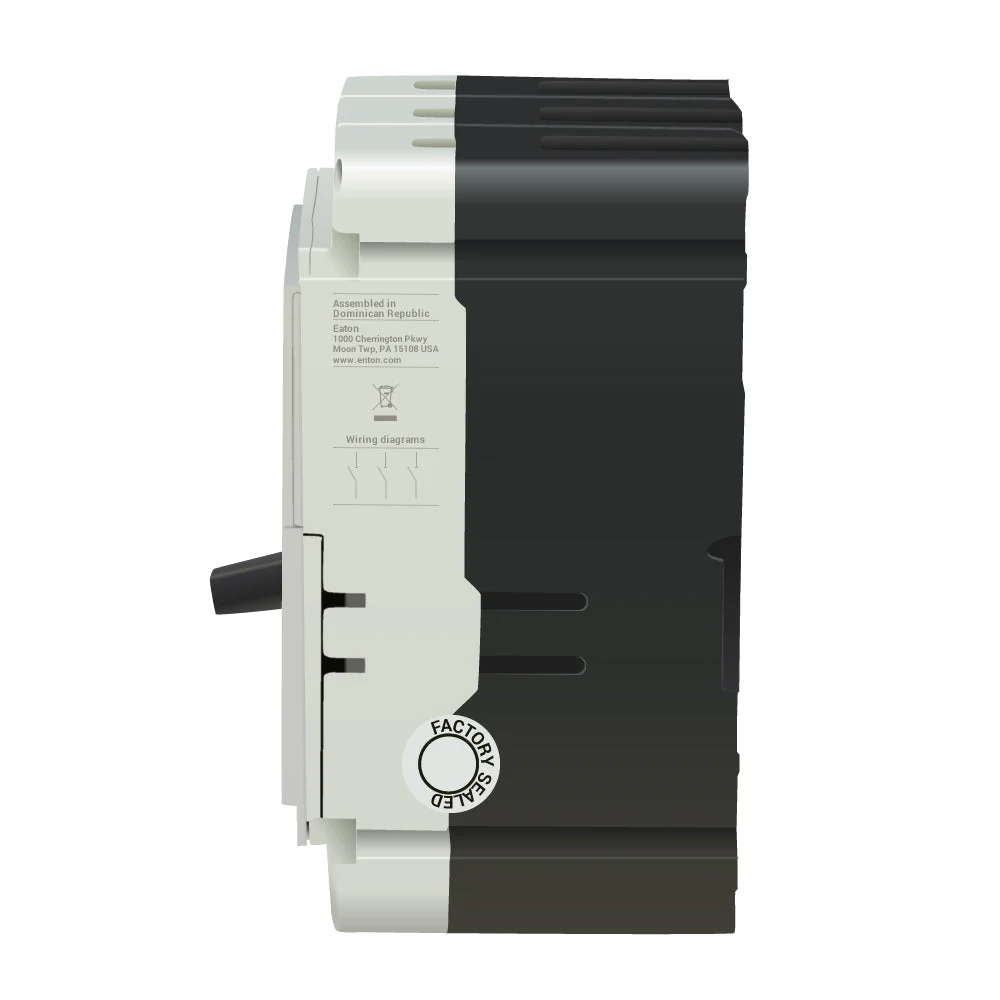

PDG22G0020TFFJ - Eaton - Molded Case Circuit Breakers
Overview
Product Specifications - PDG22G0020TFFJ - Eaton Molded Case Circuit Breakers
-
Part Number:
PDG22G0020TFFJ -
Manufacturer:
-
Family:
Power Defense -
Certifications/Standards:
UL/CSA/IEC/CCC -
Pole:
2 -
Amp:
20 -
Volt:
600 -
Phase:
1
-
Category:
-
Connection:
Feed-Thru -
Type:
PDG -
Functions:
LI - Long-Time and Instantaneous -
Protection:
Thermal Magnetic -
AIC Ratings:
35kA@480V
Dimensions
-
Dimensions (HxWxD):
9 in x 6 in x 4 in -
Weight:
5 lbs
Standards
Product Description - PDG22G0020TFFJ - Eaton Molded Case Circuit Breakers
Eaton Power Defense molded case circuit breaker, Globally Rated, Frame 2, Two Pole, 20A, 35kA/480V, T-M (Fxd-Fxd) TU, Standard Line and Load (PDG2X2T100)
$130.50
Original: $434.99
-70%PDG22G0020TFFJ - Eaton - Molded Case Circuit Breakers—
$434.99
$130.50Product Information
