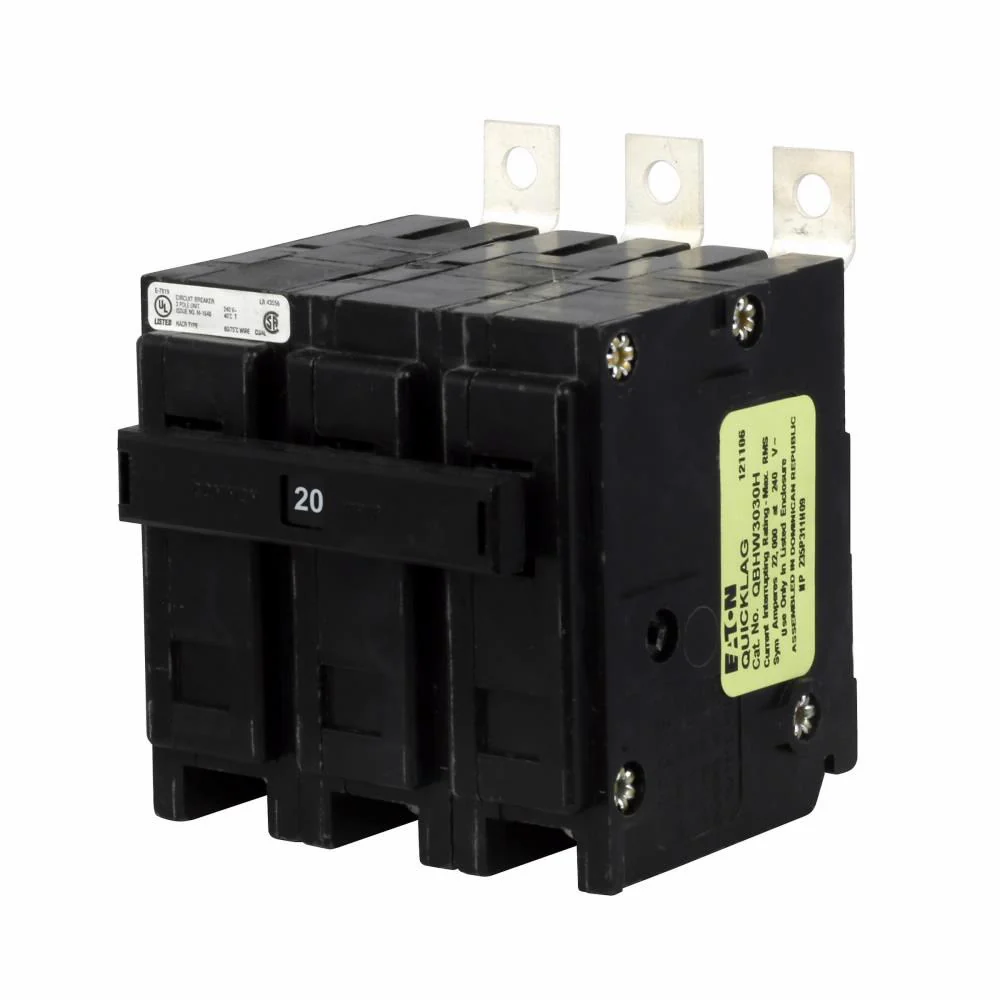

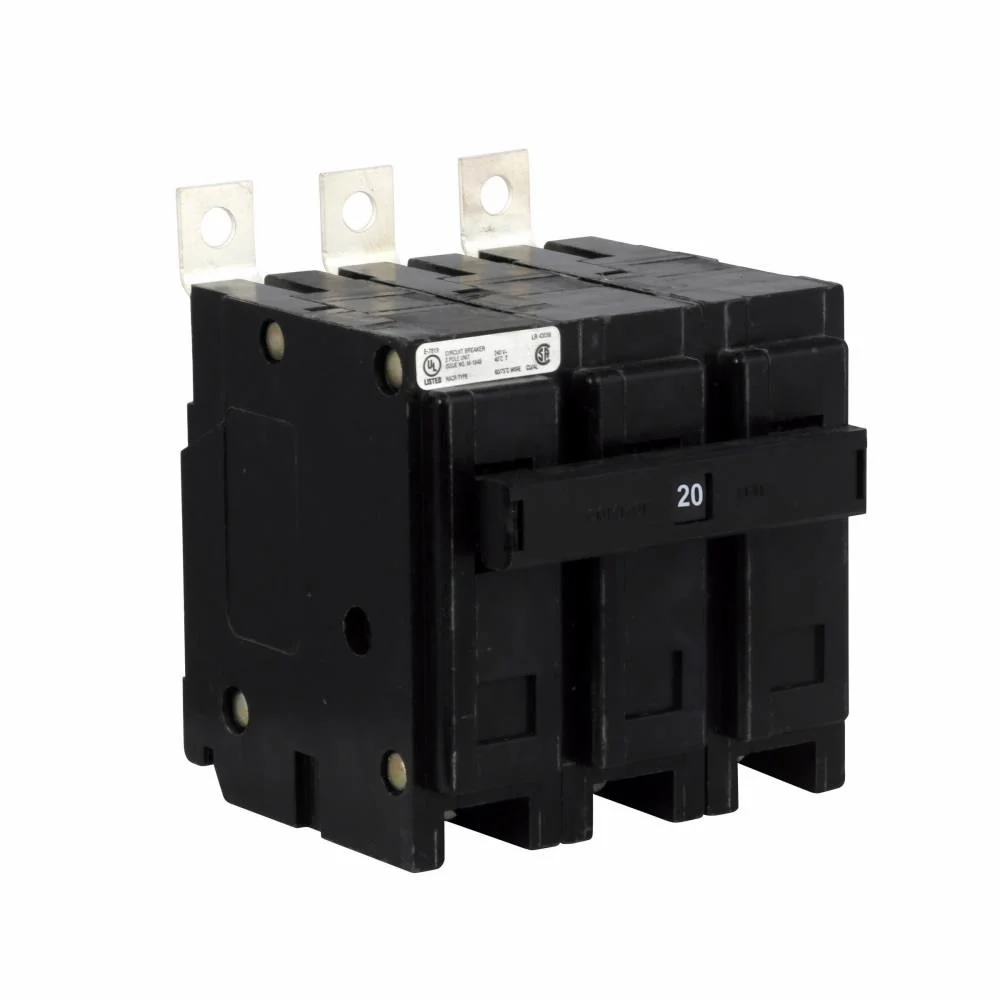

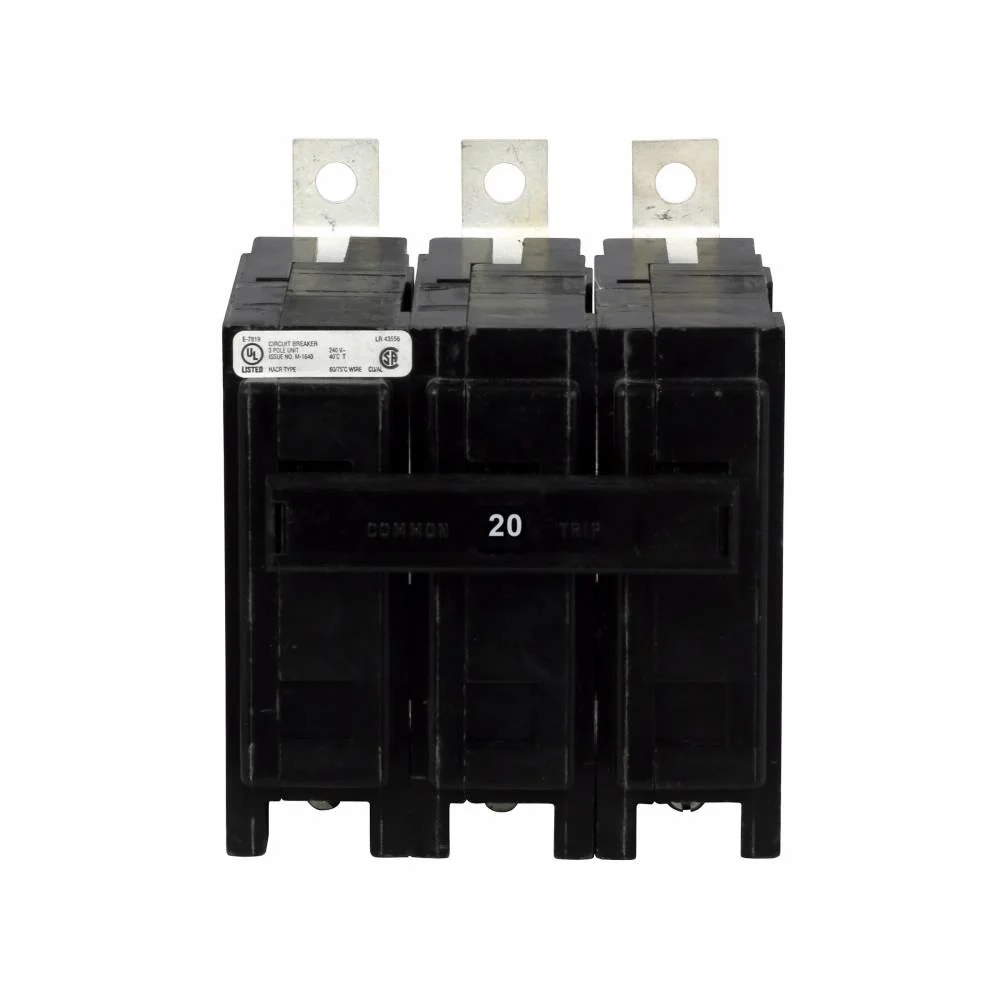

QBHW3020H - Eaton Cutler-Hammer Bolt-On Circuit Breaker

Cutler Hammer quicklag QBHW series three pole 20 ampere bolt-on molded case circuit breaker with maximum voltage rating of 240V tripping method thermal magnetic and standard interrupting rating of 22 kiloampere at 240V complete with (LI) long-time and instantaneous trip functions.

Specifications:

• Product Name: Quicklag Industrial Thermal-Magnetic Circuit Breaker
• Product Length: 3.8 IN
• Product Height: 4.7 IN
• Product Width: 3.2 IN
• Product Weight: 1.1 LB
• Certifications: UL Listed, CSA Certified
• Catalog Notes: HACR rated
• Mounting: Bolt-on
• Interrupt Rating: 22 kAIC
• Type: Quicklag
• Circuit Breaker Type: QBHW
• Quantity: Q32
• Voltage Rating: 240V
• Amperage Rating: 20A
• Trip Type: Non-Interchangeable
• Number Of Poles: Three-pole
• Authentic Eaton/Cutler-Hammer Product
• Dimensions (H x W x L): 4.7" x 3.2" x 3.8"
• 3 phase
