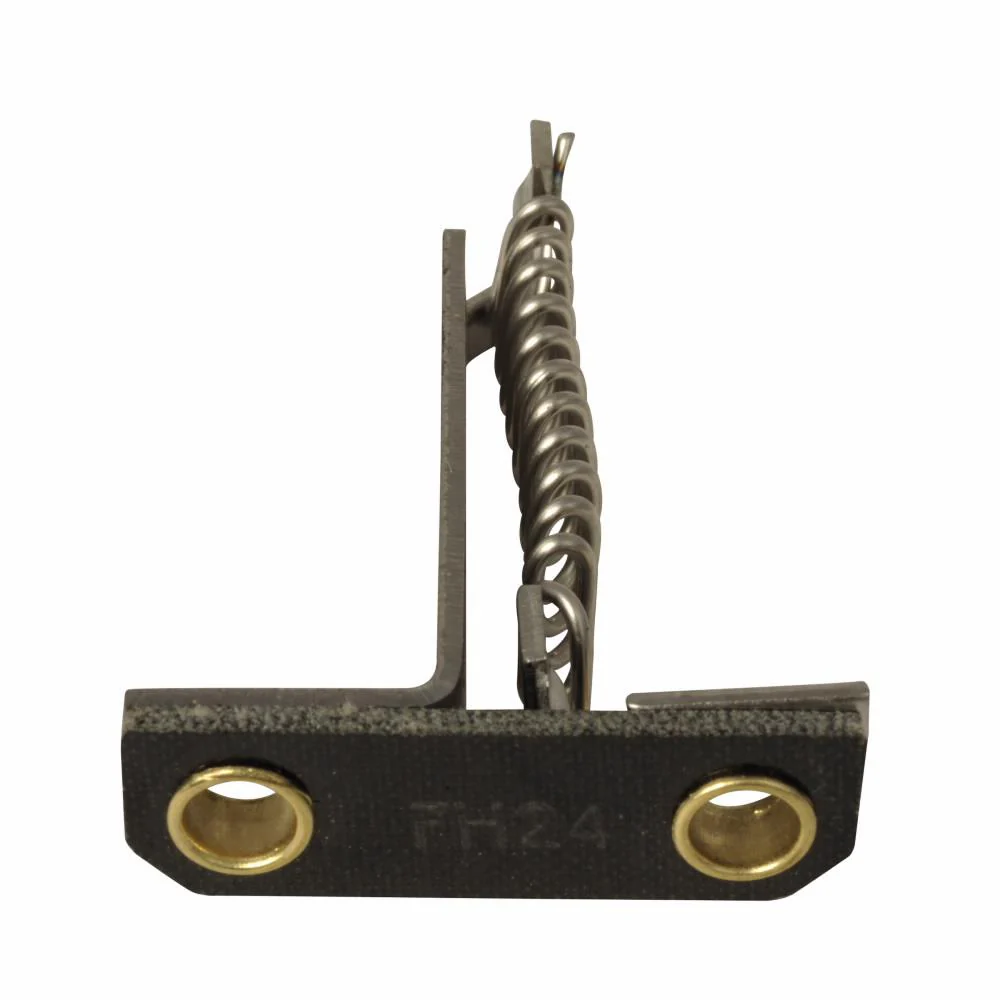

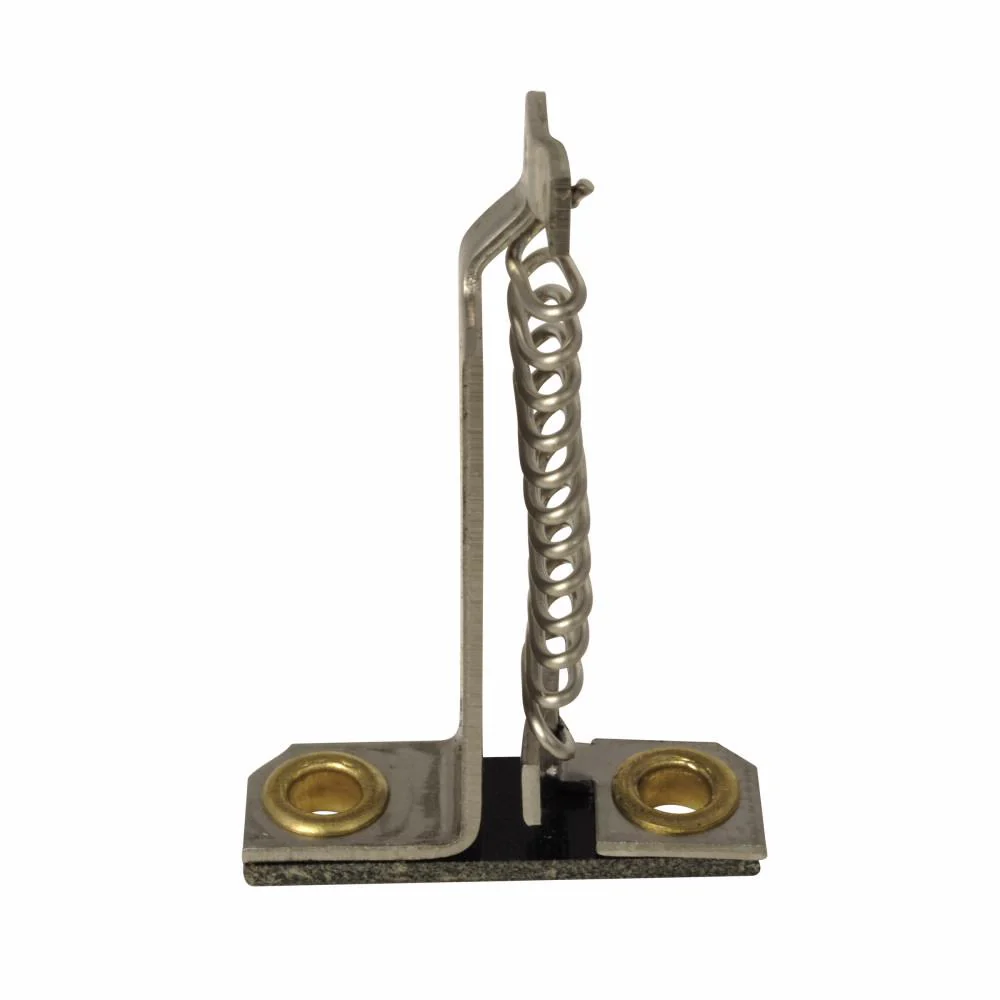

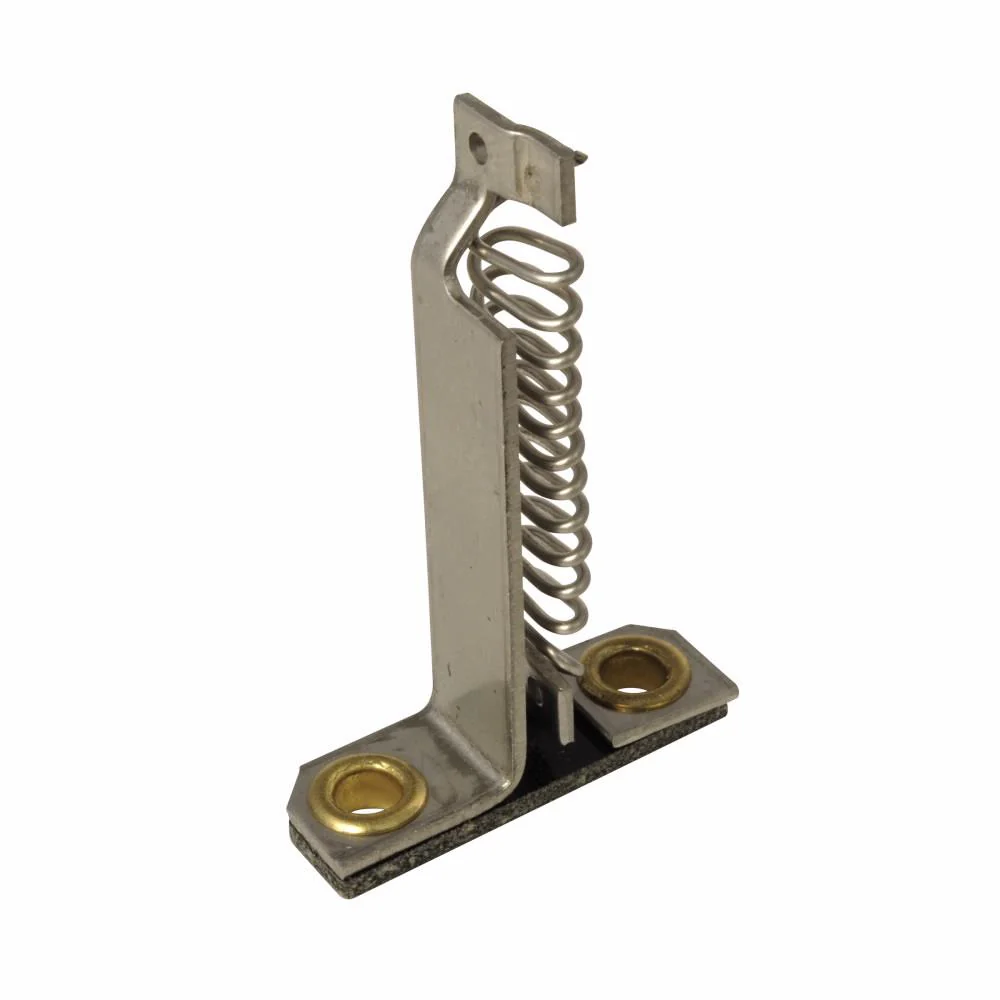

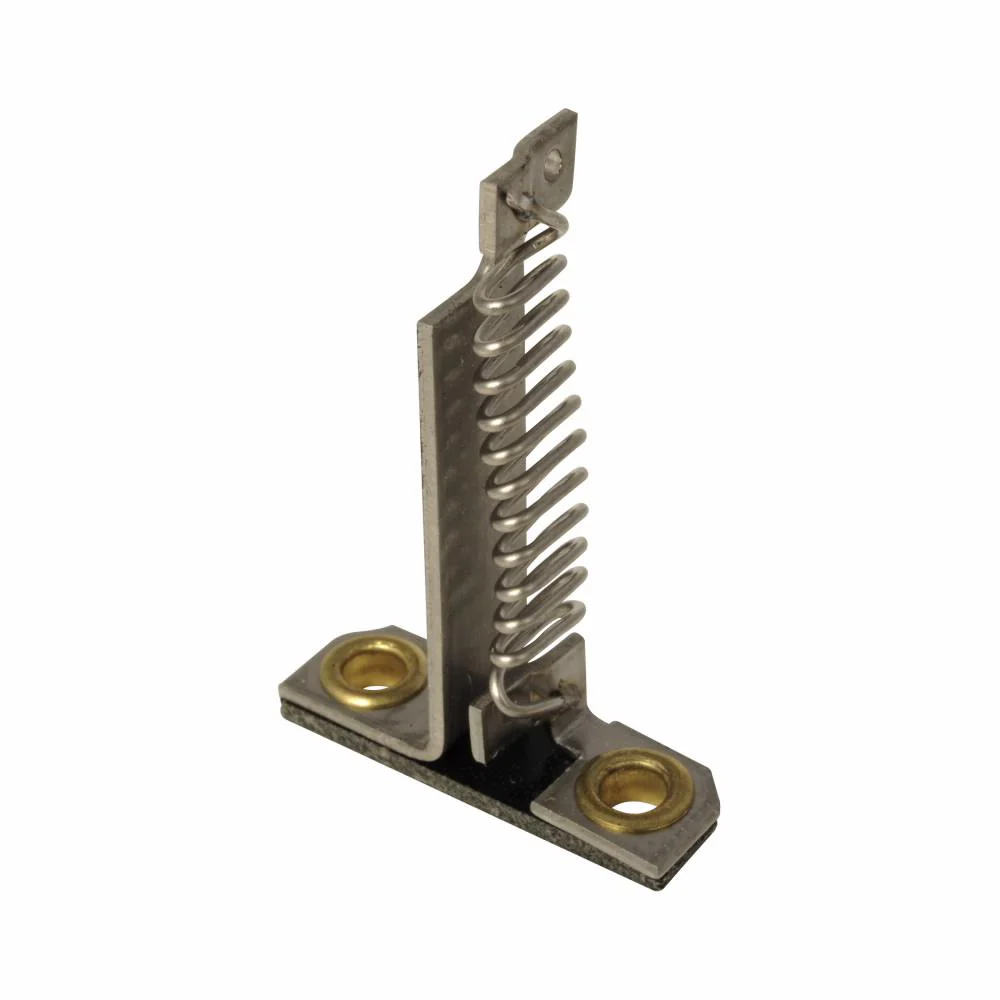

FH24 - Eaton Cutler-Hammer Overload Relay Heater

Cutler Hammer Thermal and fast trip heater element is compatible with safety and emergency exit devices. It has a current rating of 2.33 To 2.54 Ampere 2.33 - 2.54 Amp for 1 Phase 2.04 - 2.23 Amp for 3 Phase Full Load Current Range: 1.96 - 2.15 Amp Ambient 2.27 - 2.48 Amp 1.82 - 1.99 Amp Non-Comp 2.22-2.43 Amp overload non-compensating enclosed starters.

Specifications:

• Product Name: A200/B100 Heater
• UPC: 786678629599
• Certifications: CSA Certified, UL Listed
• Catalog Notes: Select heater coils based on full load current(FLA) shown on motor nameplate. Heater coils are rated to protect 40 degree C rise and a service factor of 1.15, Single-Phase requires 2 heaters, Three-Phase Requires 3 heaters
• Design: NEMA
• Full Load Current Range: Ambient 1.96-2.15, 2.27-2.48A, Non-Comp 1.82-1.99, 2.22-2.43A
• Overload Relay: Type A and B
• Special Features: Used with Starter Sizes 0,1, and 2
• Type: A200/B100 Heater
• Used With: Used with Starter Sizes 0,1, and 2
• Trip Type: Thermal and Fast Trip
• Authentic Eaton/Cutler-Hammer Product
