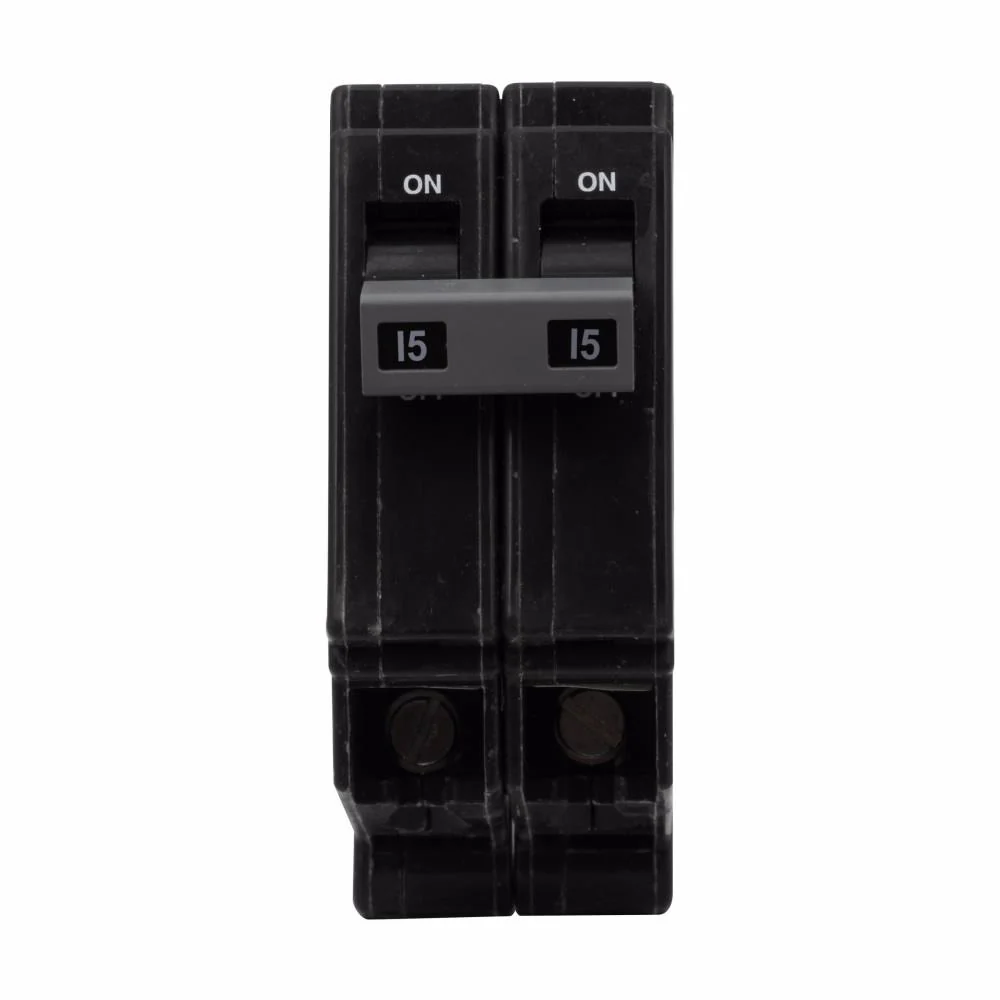

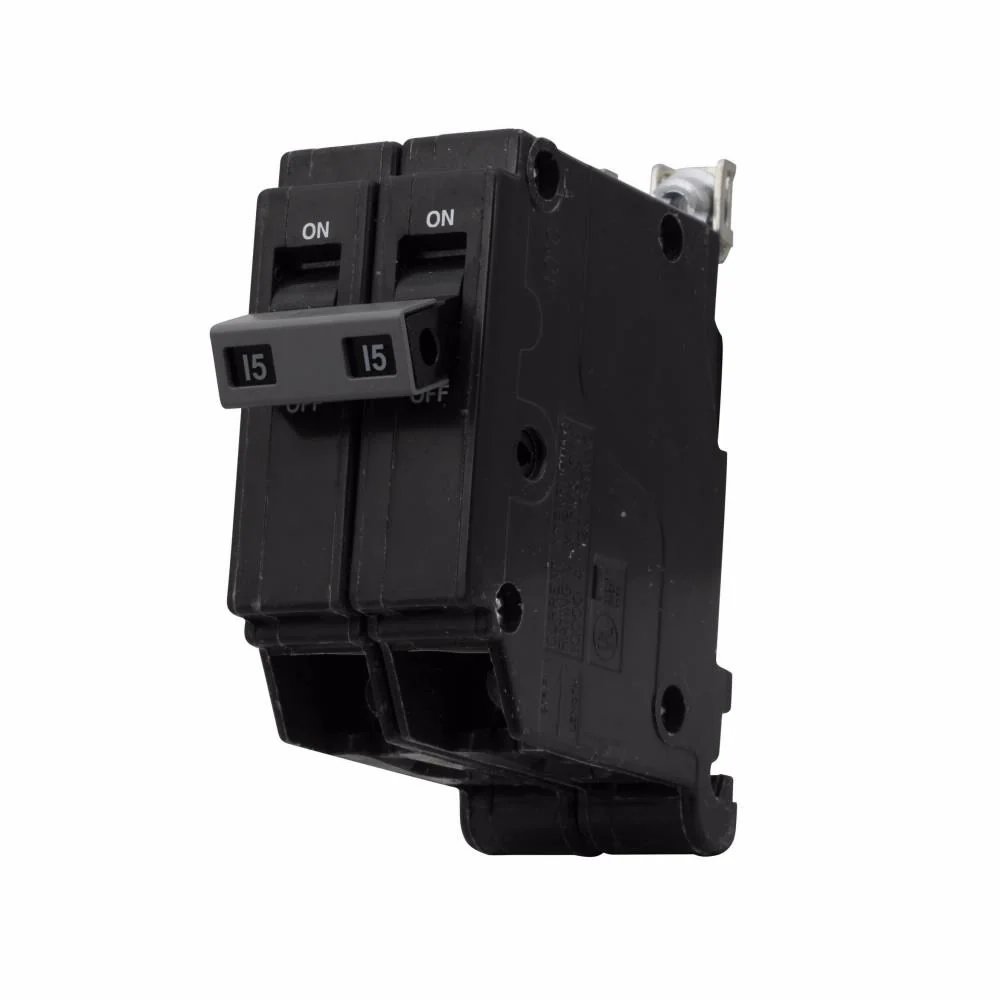

CHB215 - Eaton Cutler-Hammer Bolt-On Circuit Breaker

Eaton / Cutler-Hammer Miniature Bolt-On Circuit Breaker Its Compact And Easy to Install two pole circuit breaker has a current rating of 15 amps and voltage rating of 120/240 Vac it has an interrupt current rating of 10 kilo-Amps it can accommodate a wire size of 14-8 AWG at load it has a bolt-on type connection it is suitable for industrial Pb Panelboards applications a circuit breaker is UL and Csa certified.

Specifications:

• Product Name: Type CHB Circuit Breaker
• Product Length: 3.75 IN
• Product Height: 3.5 IN
• Product Width: 1.5 IN
• Product Weight: .62 LB
• Certifications: UL 489
• Interrupt Rating: 10 kAIC
• Wire Size: #14-8 AWG
• Circuit Breaker Type: CHB
• Used With: CH Loadcenters
• Voltage Rating: 120/240V
• Amperage Rating: 15A
• Number Of Poles: Two-pole
• Authentic Eaton/Cutler-Hammer Product
• Dimensions (H x W x L): 3.5" x 1.5" x 3.75"
