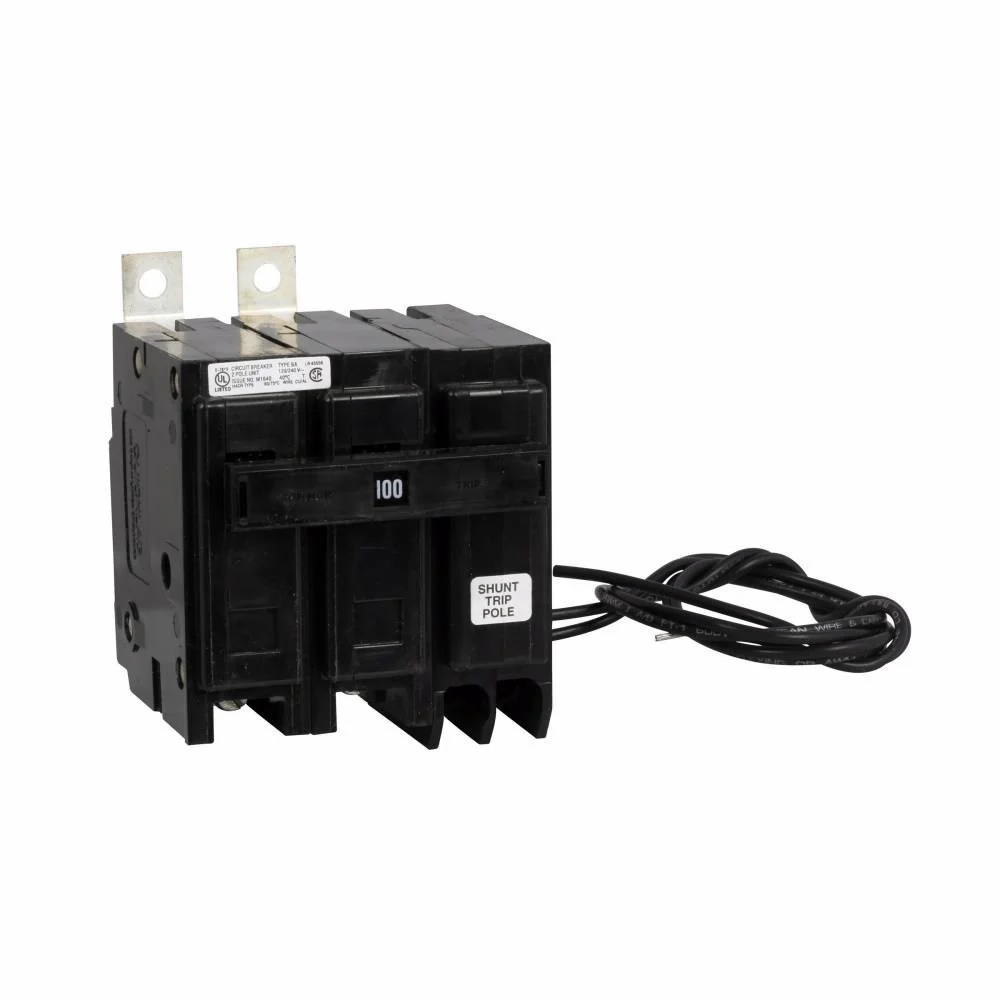

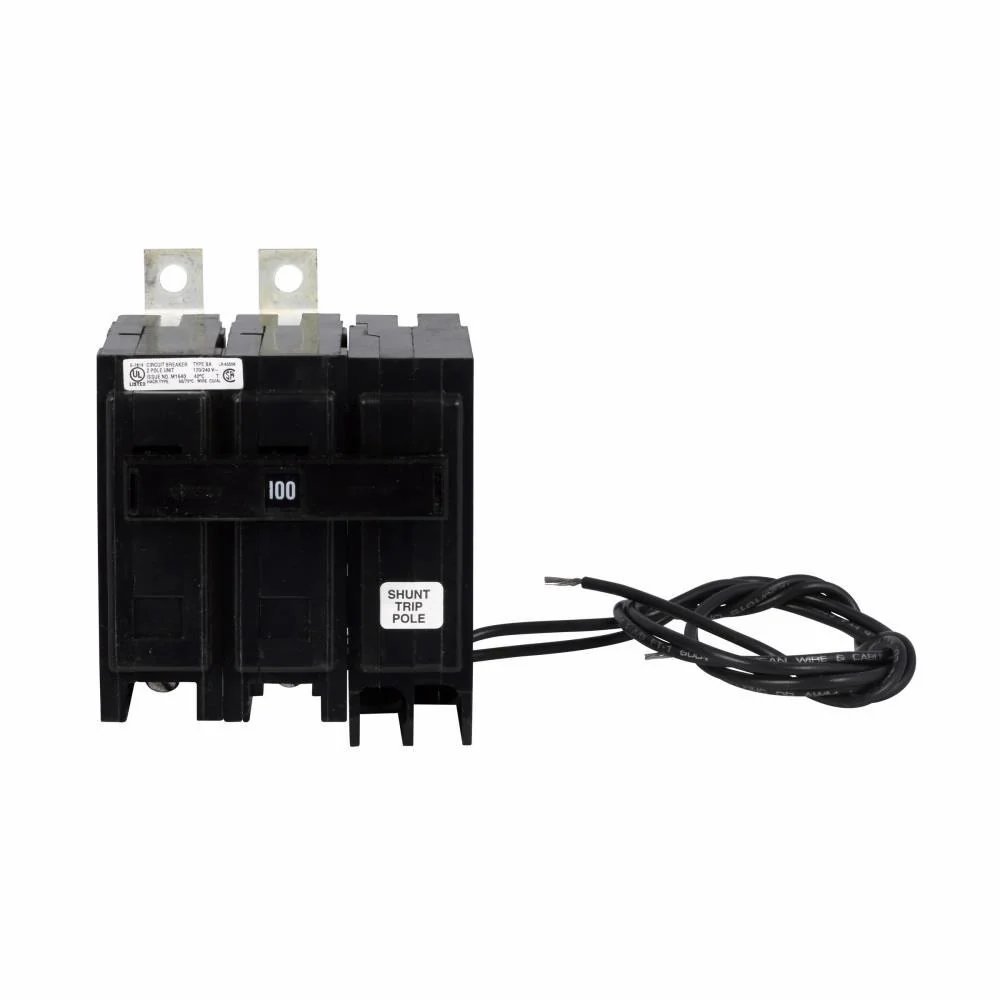

BAB2100S - Cutler-Hammer Shunt Trip Breaker

This Eaton Cutler-Hammer Shunt Trip Breaker is a compact BAB-type double-pole thermomagnetic circuit breaker rated at 100 amps at 40 degrees and 240 Vac with a tripping current of 10,000 kiloamps. 240 Vac 5,000 Amps 24 to 48 Vdc 3,800 Amps 62.5 Vdc 120/208/240 Vac with Shunt Switch.

Specifications:

• Product Name: Quicklag Industrial Thermal-Magnetic Circuit Breaker
• Product Length: 3.8 in
• Product Height: 4.9 in
• Product Width: 3.3 in
• Product Weight: 1 lb
• Certifications: UL Listed , CSA Certified
• Catalog Notes: HACR rated
• Mounting: Bolt-on
• Special Features: 120V, 208V, 240V shunt trip
• Interrupt Rating: 10 kAIC
• Type: Quicklag
• Circuit Breaker Type: BAB
• Quantity: Q7
• Voltage Rating: 120/240V
• Amperage Rating: 100A
• Trip Type: Non-Interchangeable
• Number Of Poles: Two-pole
• Authentic Eaton/Cutler-Hammer Product
• Dimensions (H x W x L): 4.9" x 3.3" x 3.8"
