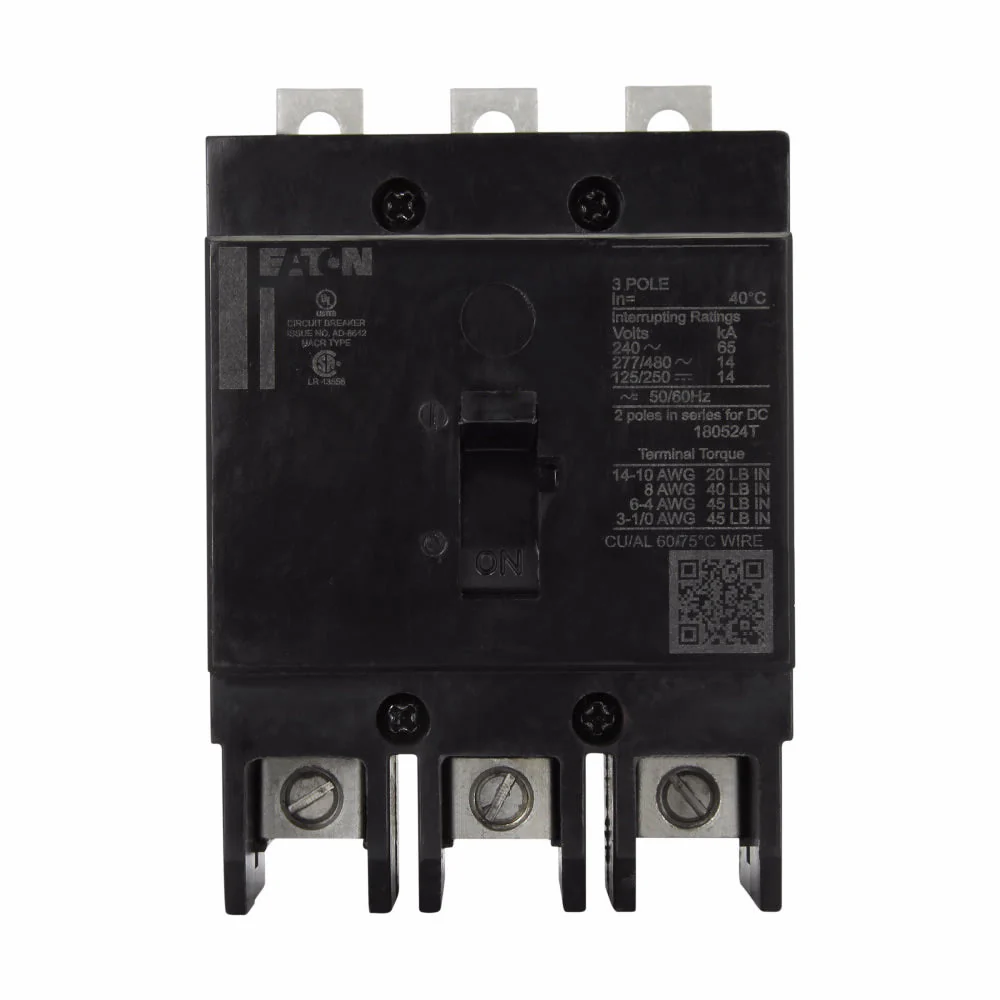

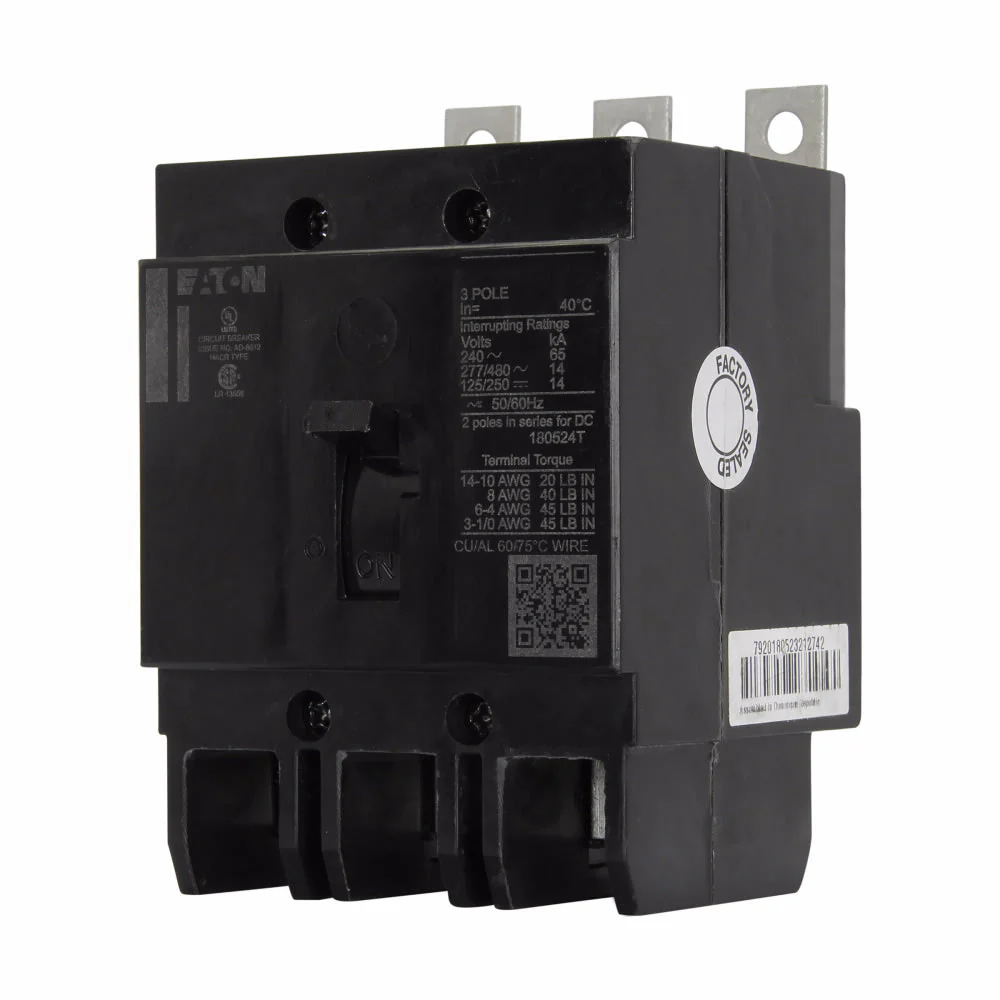

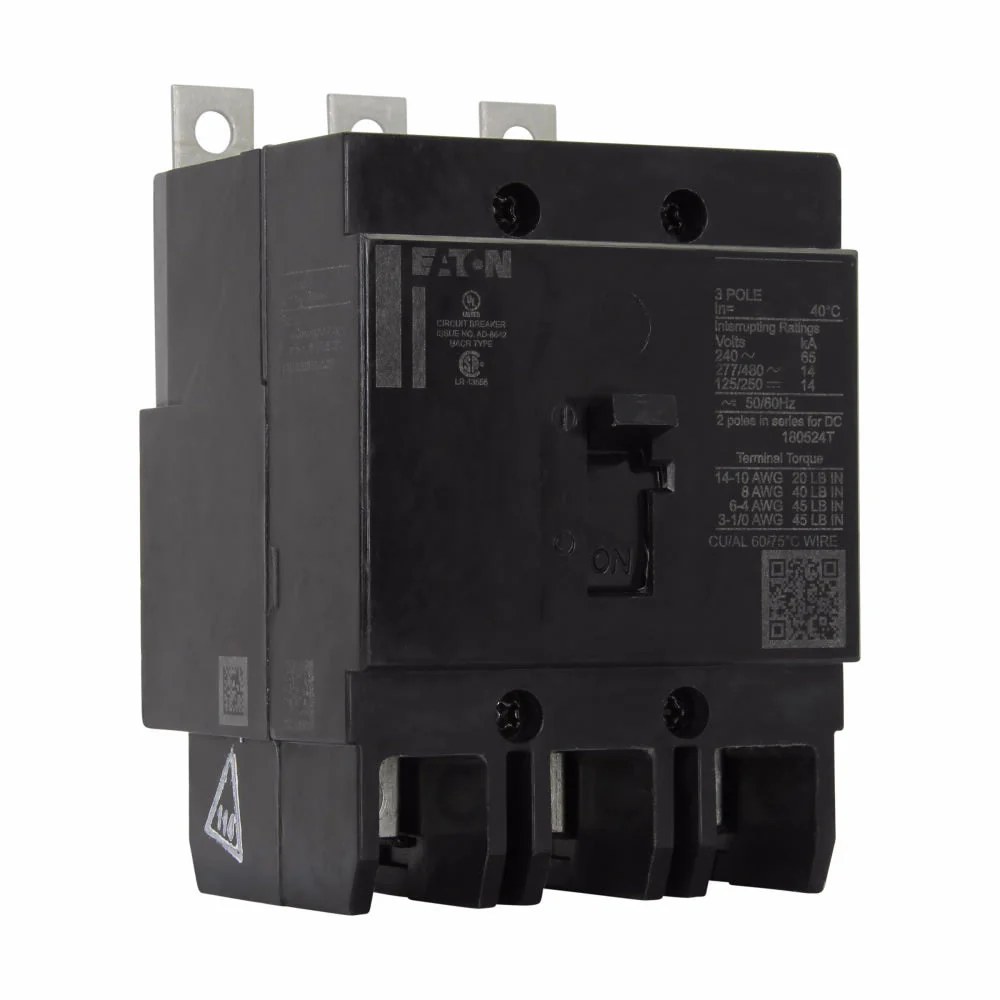

GHB3100S1 - Eaton Cutler-Hammer 100 Amp 3 Pole 480 Volt Bolt-On Molded Case Circuit Breaker

Eaton,Westinghouse, Cutler Hammer, Series C, type GHB, 3P, 3PH, 100A, 480V, 125/250VDC, 14kA@480V, standard interrupting capacity, 40°C, bolt-on, suitable for reverse feed use, includes 120V shunt trip, complete with non-interchangeable, LI - Long-Time and Instantaneous trip functions

• Manufacturer: Eaton Cutler-Hammer
• Type: GHB
• Family: Series C
• Functions: LI-Long-Time and Instantaneous
• UL Listed and CSA Certified

Interrupting Rating

• AIC Rating: 14kA@480V

Specifications

• Protection: Thermal Magnetic
• 3 Pole
• Frame Type: G Frame
• 100 Amp
• 480 Volt
• 3 Phase
• Connection: Bolt-On
• Dimensions (H x W x L): 4.0" x 1.8" x 2.63"
