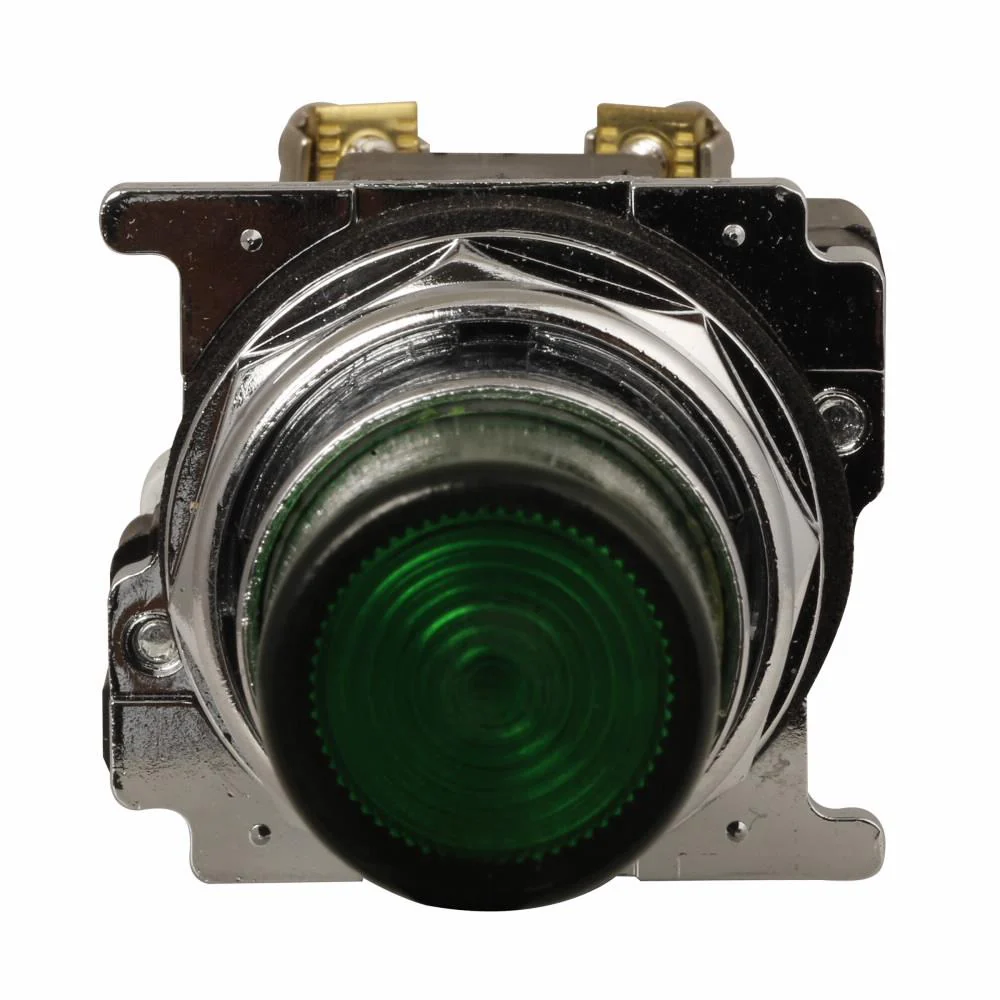

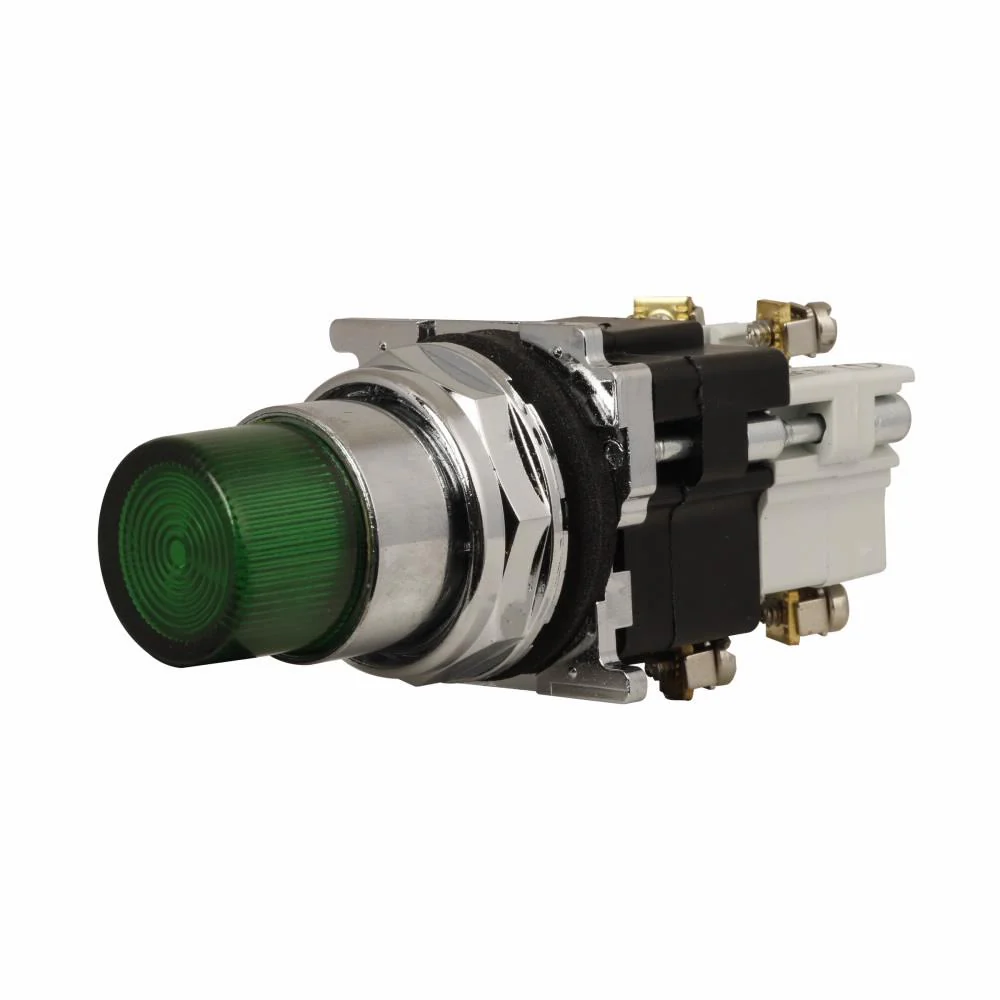

10250T76G - Eaton Cutler-Hammer Push Button Operator

Eaton / Cutler Hammer Push Button Compact 30.5 mm easy to install Lamp type Incandescent Lamp Cap/lens color green Heavy-Duty chrome plated die cast zinc metal body construction for extra durability With maximum voltage rating of 600 Vac at 50/60 Hz 10Ampere 250 Vdc 5Ampere Application automation and logic control equipments.

Specifications:

• Product Name: Eaton 10250T pushbutton
• UPC: 782113685083
• Product Weight: .3 LB
• Compliances: CE Marked
• Certifications: CSA Certified, UL Listed
• Contact Configuration: 1NO-1NC
• Special Features: 10250T series
• Actuator Color: Green
• Actuator Material: Plastic
• Light Unit Voltage: 120 V
• Color: Green
• Rating: NEMA 3, 3R, 4, 4X, 12, 13
• Bezel: Chrome
• Led Lamp Number: #755
• Light Unit Type: Incandescent, transformer
• Series: 10250T
• Type: 30.5 mm Heavy-Duty Watertight/Oiltight
• Operating Mode: Momentary
• Illumination: Illuminated
• Application: Pushbutton
• Actuator: Extended
• Authentic Eaton / Cutler Hammer Product
• Voltage Rating: 600 Volt
• Dimensions (H x W x L): 4.5" x 2.2" x 2.5"
