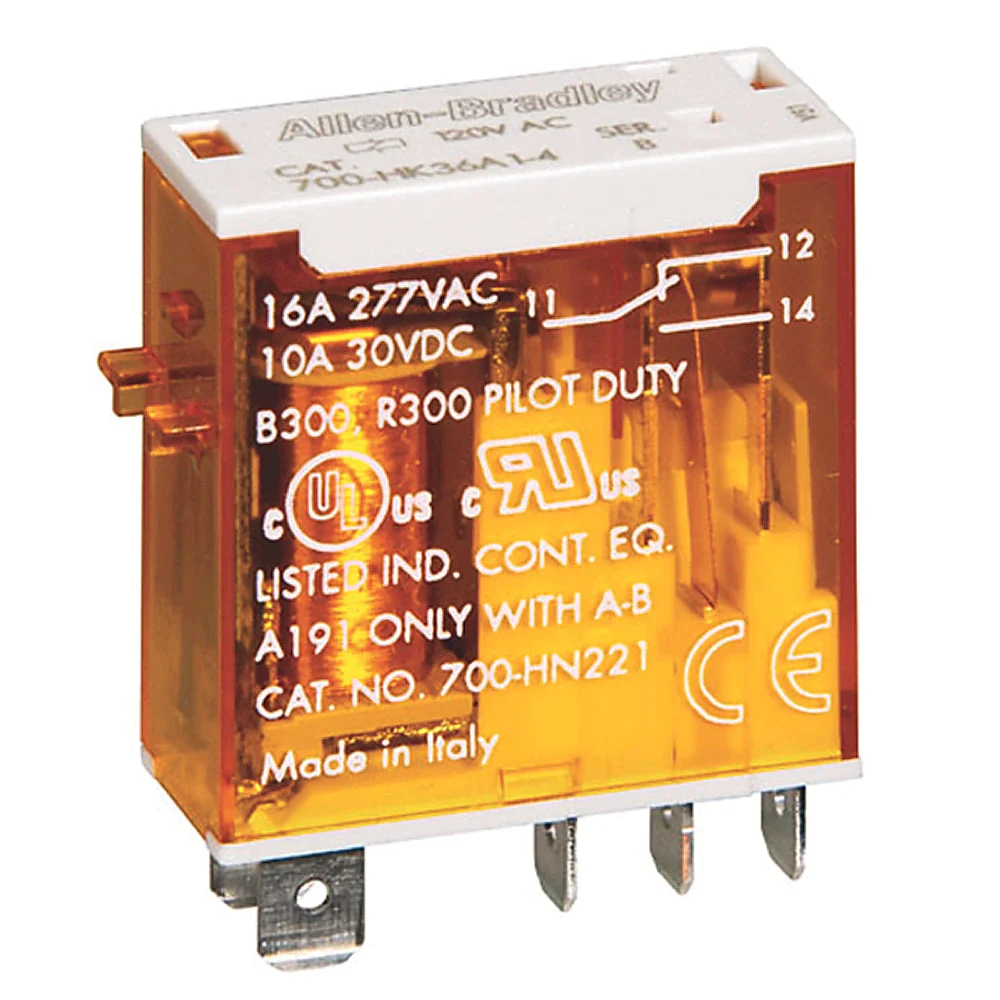

700-HK36Z24 - Allen-Bradley 16 Amp General Purpose Slim Line Relay

Relay, Ice Cube, Slim Line, 5 Blade, 1-Pole, Double Throw, 16 Amp, 24 Volt DC, Quick Connect Terminations
Lower power consumption and long life equal big savings. Allen-Bradley Bulletin 700 relays and timing relays allow you to focus on core activities, not parts. And 700-HK interposing relays features a jumper system to reduce wearing costs. Catalog item 700-HK36Z24 from Rockwell Automation is a 24 V DC general purpose slim line relay. Its specifications include: standard contacts and one changeover contact (single pole double throw, SPDT) 16 A. Allen-Bradley is a trademark of Rockwell Automation, Inc.

• Manufacturer: Allen-Bradley

Specifications

• Cat. No.: 700-HK36Z24
• 700-HK General Purpose Slim Line Relay
• Contact Rating: 16 Amp Standard Contact
• Contact Configuration: SPDT Contact Arrangement
• Coil Voltage: 24V DC
• Authentic Allen-Bradley Product
• Number of contacts as change-over contact -1
• Nominal current -16 A
• Complete with socket -No
• With LED indication -No
• Voltage type for actuating -DC
• Rated control supply voltage at DC -24 V
• Type of electric connection -Plug-in connection
• Rated thermal current (Ith) -16 A
• Electrical life cycle -B300, R300, Hp (kW): 6000 minimum
• With detachable clamps -No
• With forced-guided contacts -No
• Degree of protection (IP) -IP20
• Shock Operational -15 G
• Vibration -Operational: 10...2000 Hz, 0.76 mm (0.03 inch) 2.5 G
• List of degrees of protection (IP) -IP20 with guarded terminal socket
• Width -29 mm
• Height -39.3 mm
• Depth -12.4 mm
• Contact material -Silver Nickel (AgNi)
• Material of contact surface -Other
• Operating temperature -40 °C
• Storage temperature -40 °C
